Battery Powered DMX Decoder Do-dad
Battery Powered DMX Decoder Do-dad
Couldn't load pickup availability

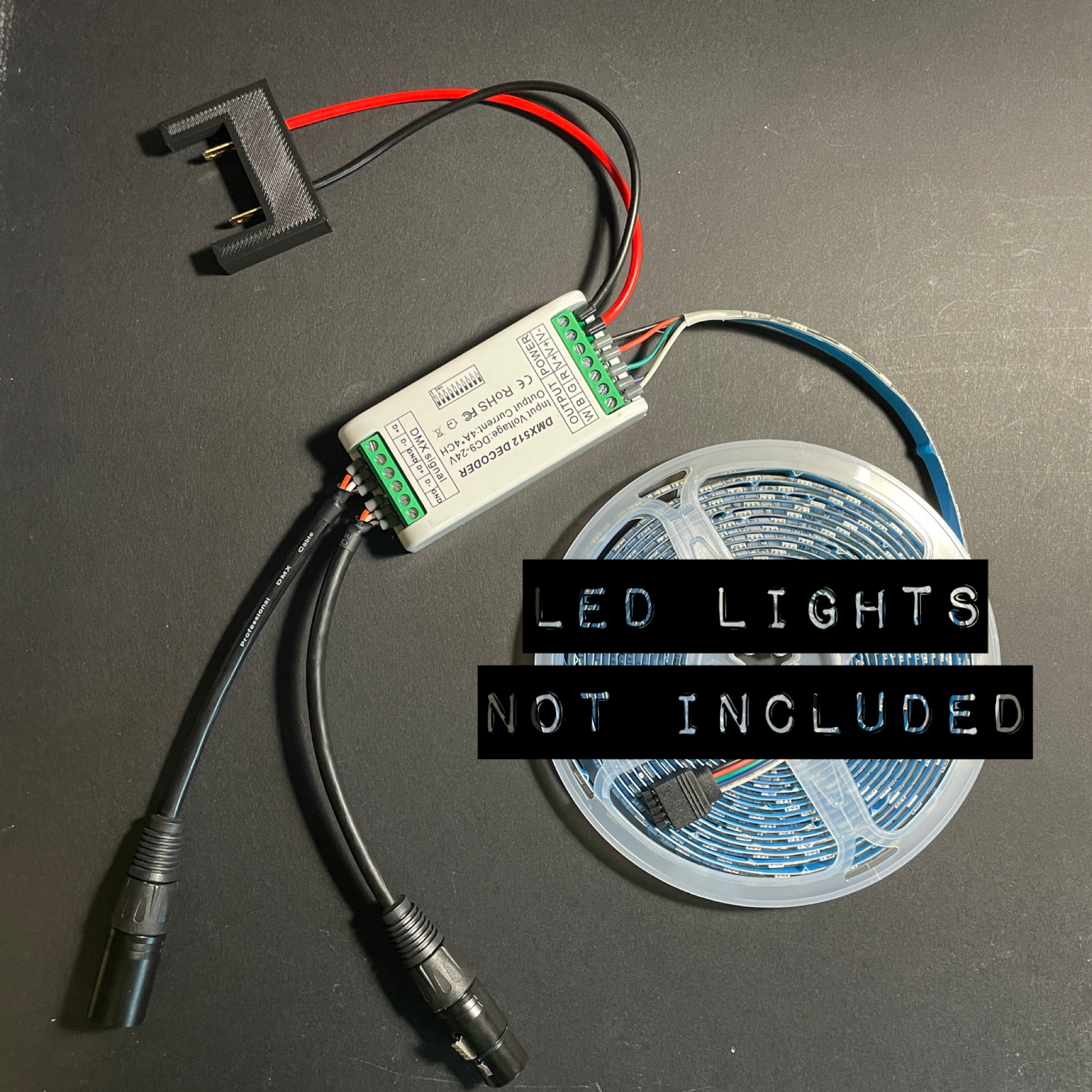

Dmx Do-dad **LEDs and 12V battery not included**

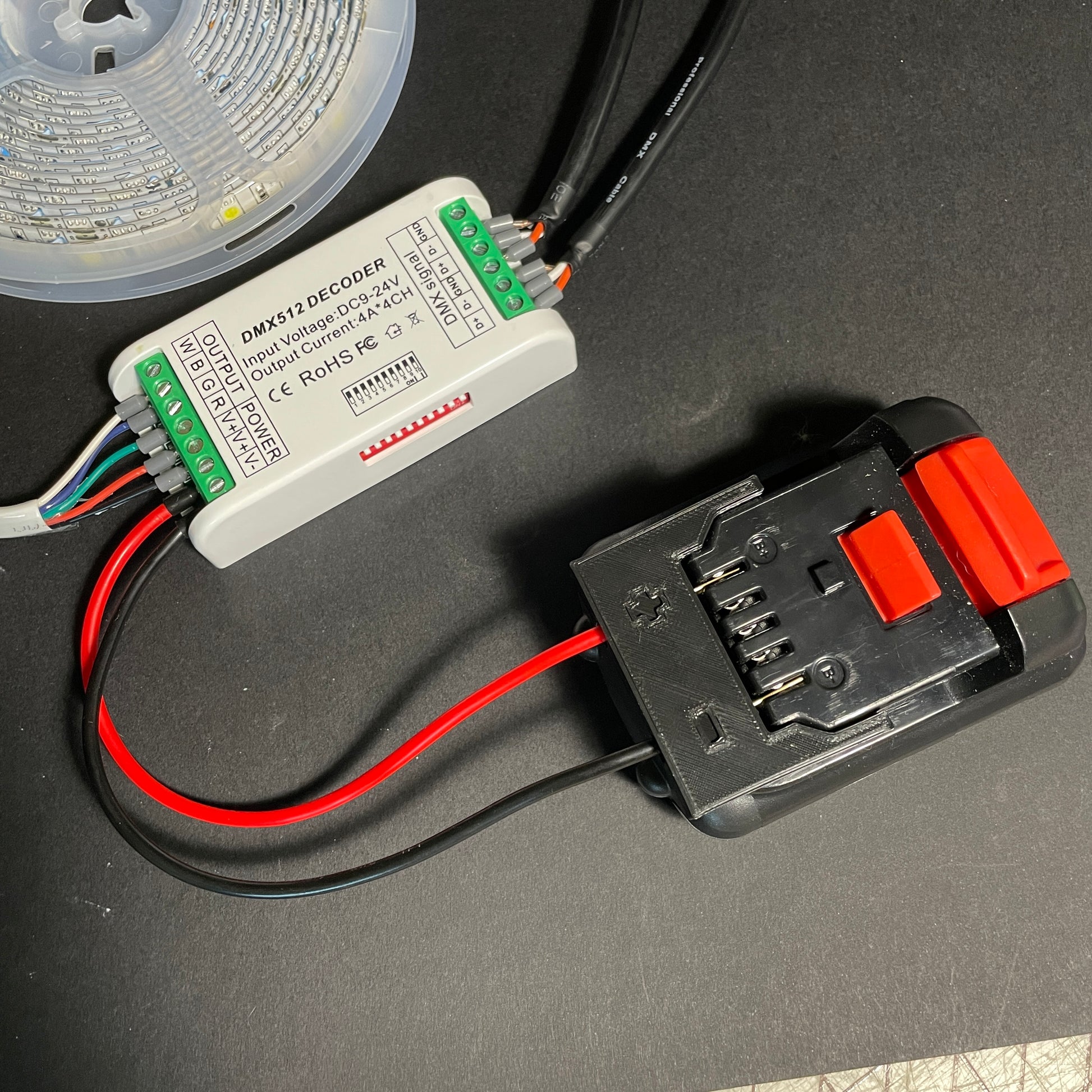

Ever wanted a way to control LED strip lights wirelessly. Use this decoder along side a wireless transmitter such as a Wifly, ShowBaby or Donner (not included). You can use a rechargeable 12v tool battery to power LEDs strip lights or 12v LED bulbs. Control more than one strip light using one transmitter through the daisy chain male and female ends.
💡Each 3-pin XLR pigtail is about 6 inches long.
💡12v batter adapter is about 6 inches long
💡Overall length of do-dad is 12 inches long.
What is included:
Mini DMX decoder

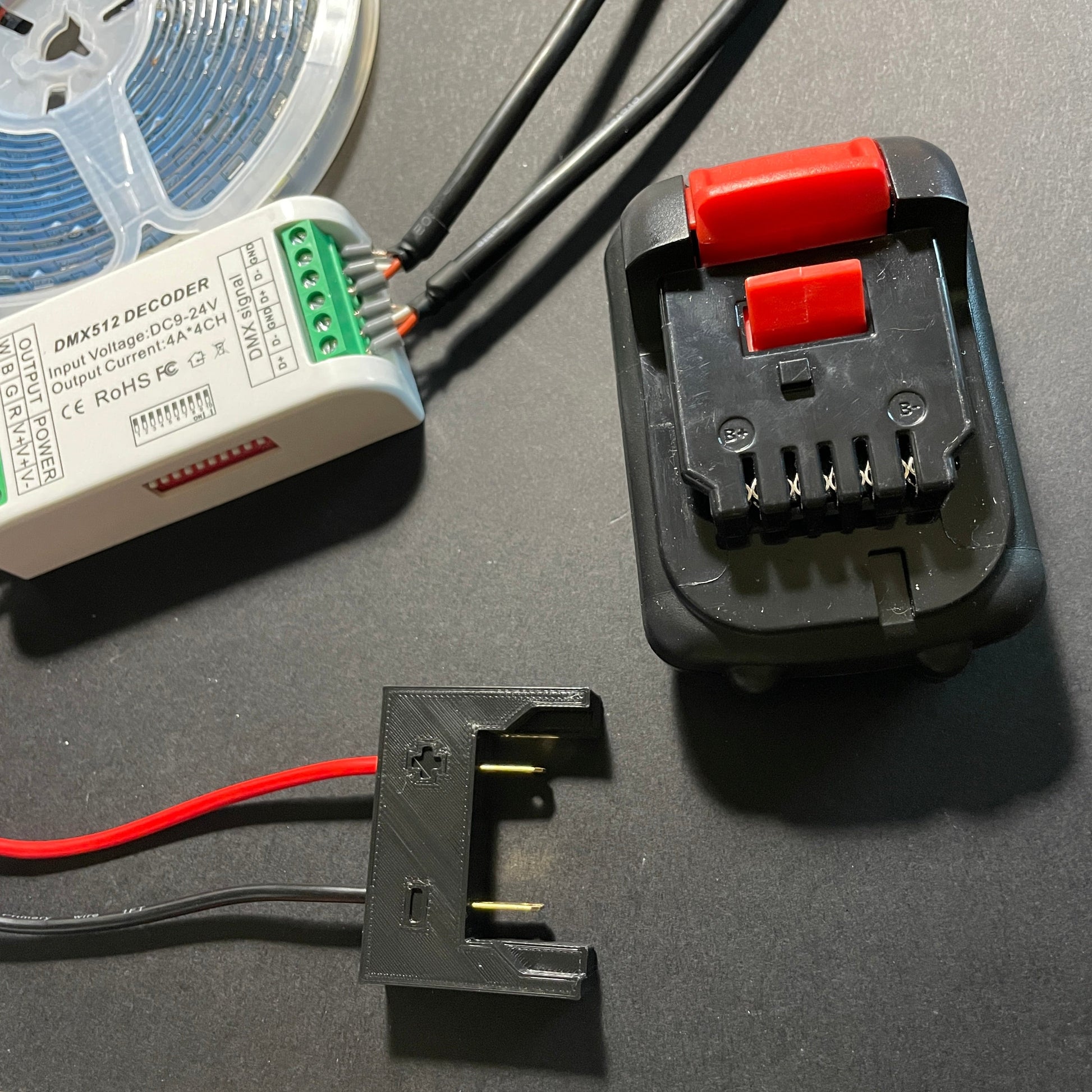

12V battery adapter

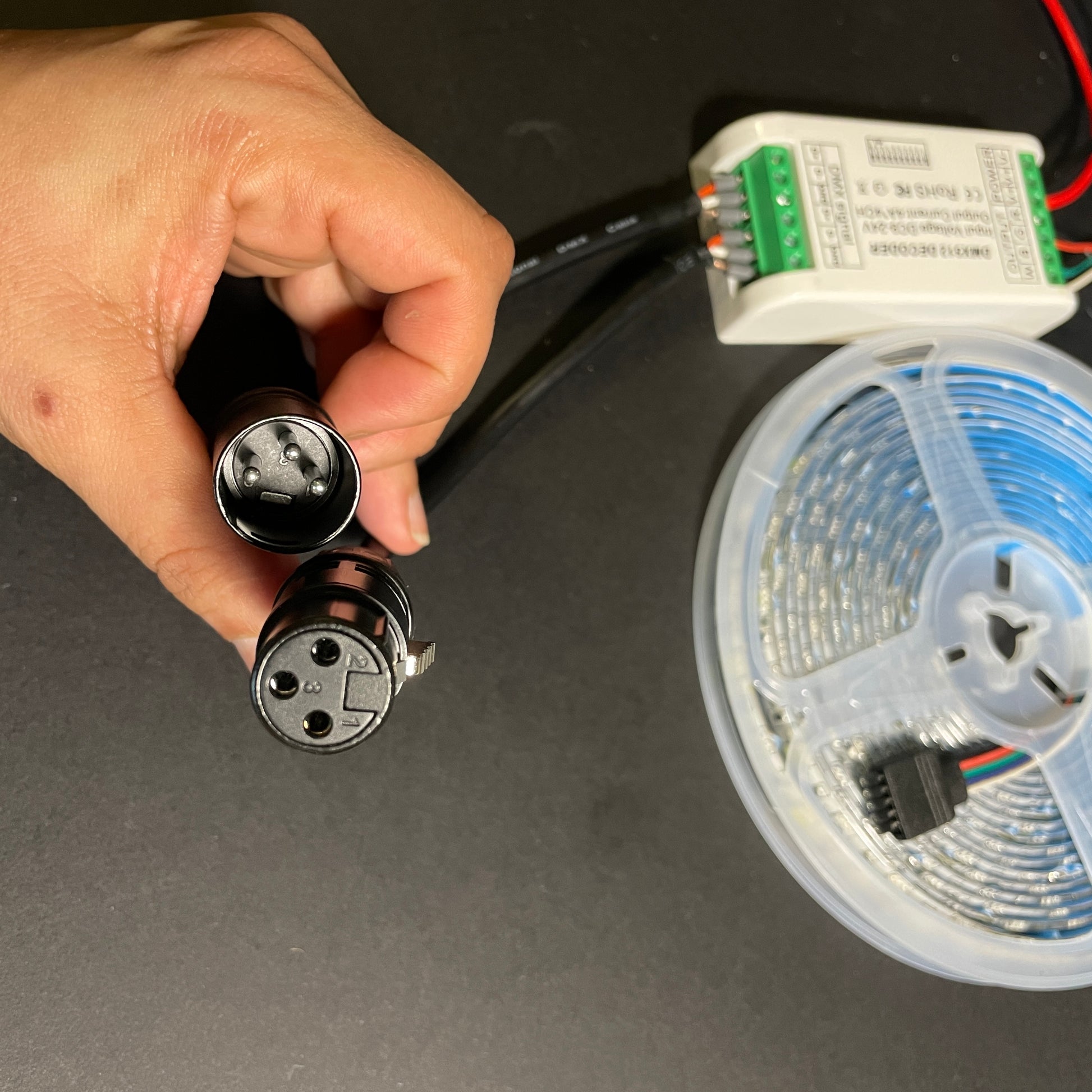

Male 3-pin pigtail
Female 3-pin pigtail

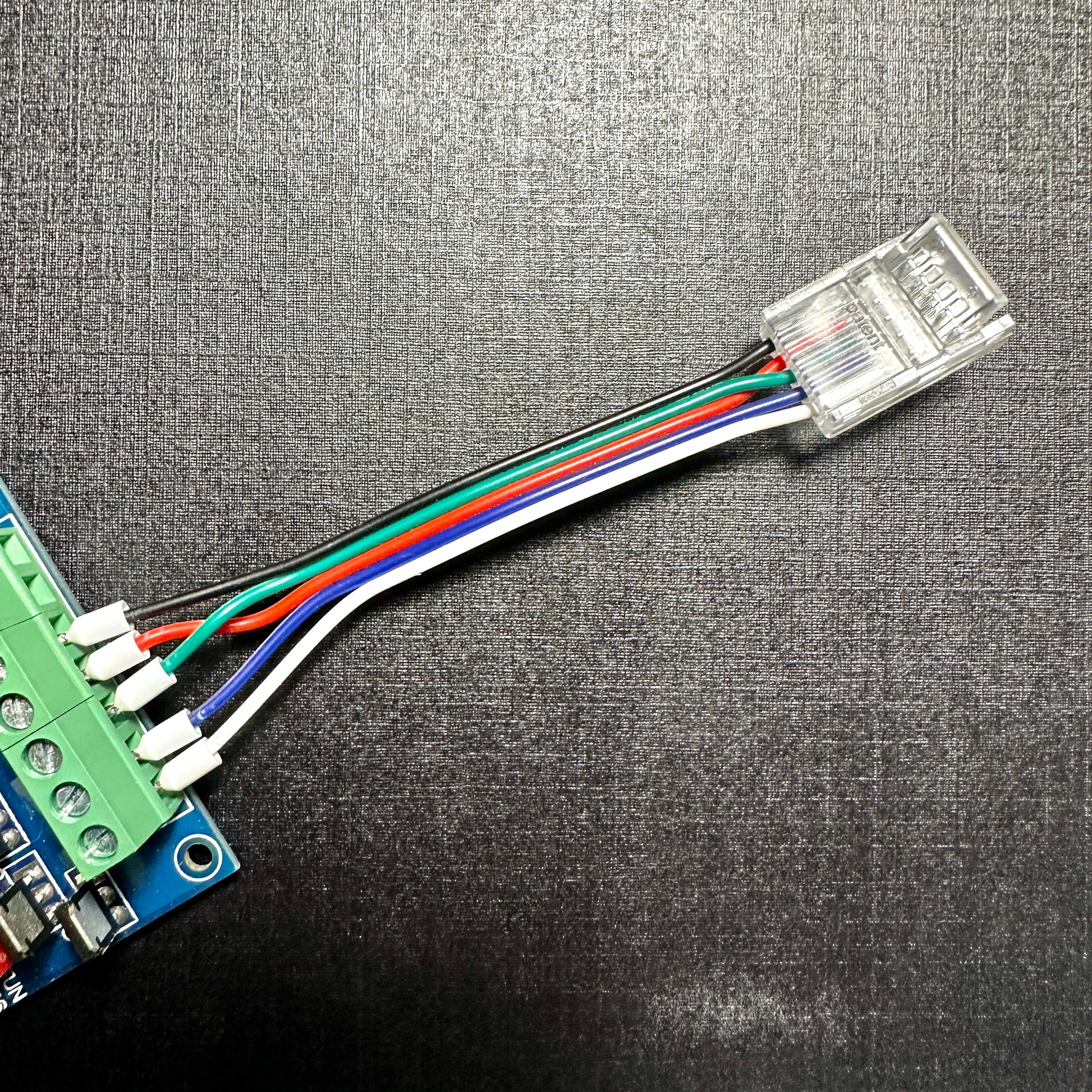

12mm RGBW solder-less connector pigtail

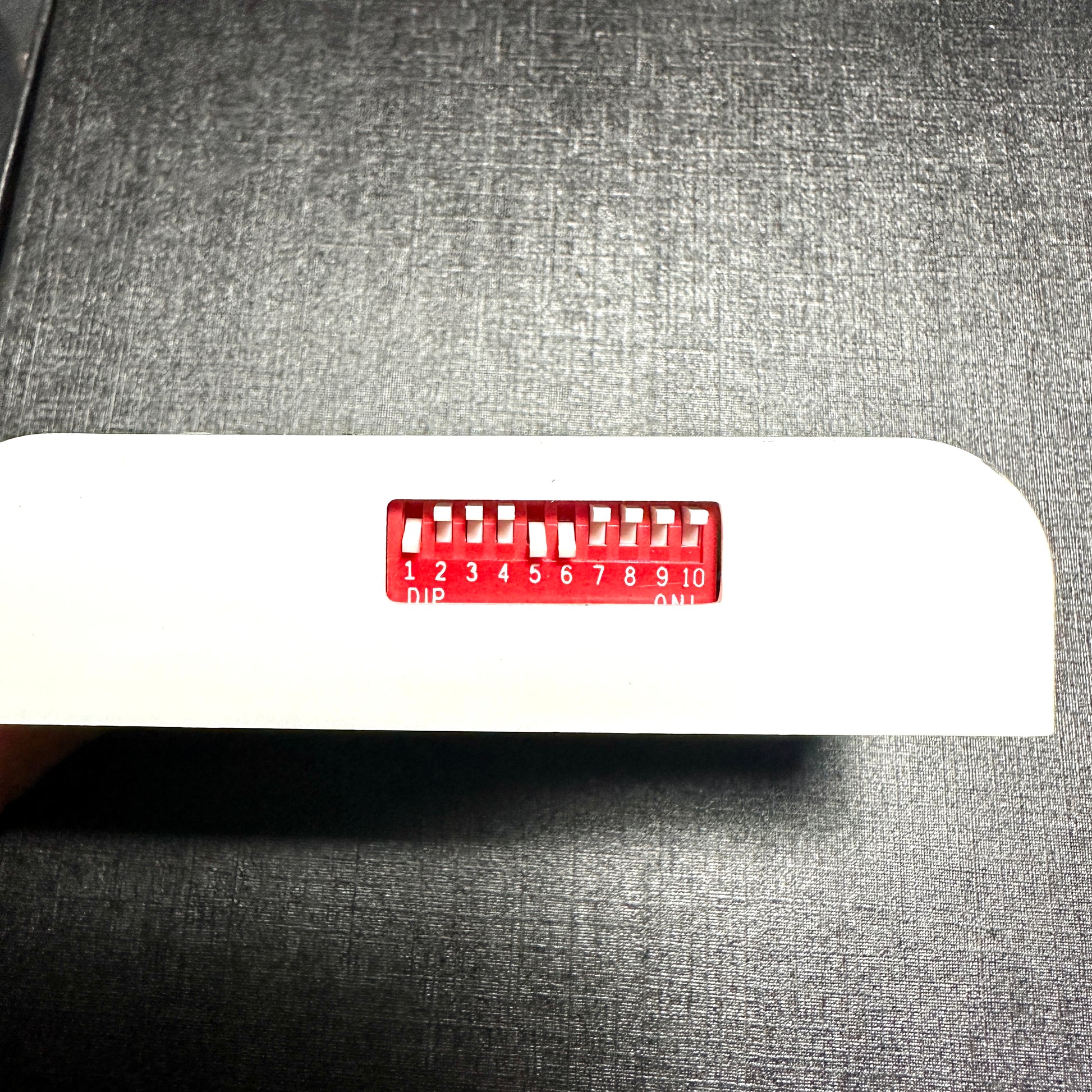

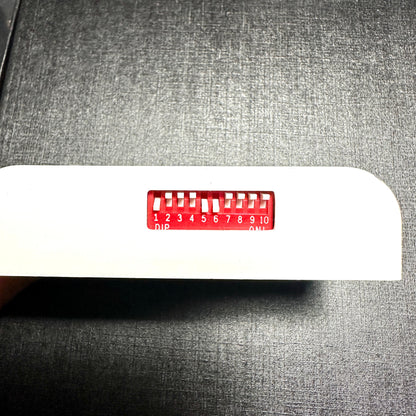

Dmx decoders do not come pre-address and must be address by the user. Decoders are addressed using dip switches. DMX DIP conversion mobile apps can be found for both IOS and Android.
The generic RGBW or WBGR (16bit) profile is typically used when programming on lighting consoles. If you need a different configuration, feel free to email and ask me for custom Do-dads.
The maximum length of LED strip per 12V batter is 5m or 16.4 ft. This is typically a standard roll. Please calculate your electrical load so as to not overload your circuit.
